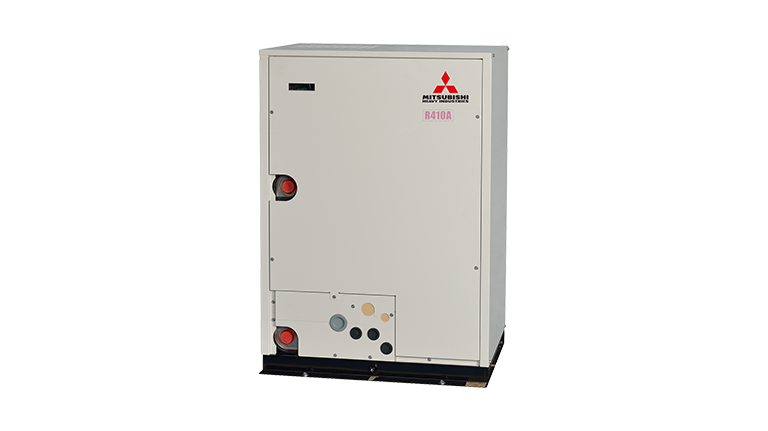

KXZW Series

With a footprint of only 1100 x 780 x 550mm per single indoor, the KXZW series of watercooled VRF systems boasts a highly compact design while delivering higher energy efficiencies compared to air-cooled systems. The KXZW series allows for flexible system design and connection of up to 80 indoor units.

CAPACITIES: 22.4kW – 100.0kW

POWER: Three Phase | AVAILABLE IN: 2 Pipe | Refrigerant: R410A

Key features

Connect up to 80 indoor units
Compact design for easy installation and flexible system design
Higher EER/COP compared to air-cooled systems
Huge energy savings and reduced operating costs
Compatible with a range of indoor units

Contact MHIAA Consultant

Model Line-Up
Connectable Indoor Units

Model Line-Up

Model	kW	Max no. connectable I.U.	Maximum Connection Capacity (%)
FDC224KXZWE1	22.4	22	100
FDC280KXZWE1	28.0	28	100
FDC335KXZWE1	33.5	33	100
FDC450KXZWE1	45.0	44	100
FDC500KXZWE1	50.0	50	100
FDC560KXZWE1	56.0	56	100
FDC615KXZWE1	61.5	61	100
FDC670KXZWE1	67.0	67	100
FDC730KXZWE1	73.0	72	100
FDC775KXZWE1	77.5	78	100
FDC850KXZWE1	85.0	80	100
FDC900KXZWE1	90.0	80	100
FDC950KXZWE1	95.0	80	100
FDC1000KXZWE1	100.0	80	100

Ceiling Cassette

4way	FDT	Capacity kW 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16
4way Compact	FDTC	Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6
2way	FDTW	Capacity kW 2.8 4.5 5.6 7.1 9.0 11.2 14
1way	FDTS	Capacity kW 4.5 7.1
1way Compact	FDTQ	Capacity kW 2.2 2.8 3.6

Ducted

High Static Pressure	FDU	Capacity kW 4.5 5.6 7.1 9.0 11.2 14 16 22.4 28
Low/Middle Static Pressure	FDUM	Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16
Low Static Pressure (thin)	FDUT	Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 7.1
Compact & Flexible	FDUH	Capacity kW 2.2 2.8 3.6

Wall Mounted

		FDK	Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0

Ceiling Suspended

		FDE	Capacity kW 3.6 4.5 5.6 7.1 11.2 14

Floor Standing

2way	FDFW	Capacity kW 2.8 4.5 5.6
with casing	FDFL	Capacity kW 7.1
without casing	FDFU	Capacity kW 2.8 4.5 5.6

OA Processing Unit

		FDU-F	Capacity kW 9.0 14 22.4 28
