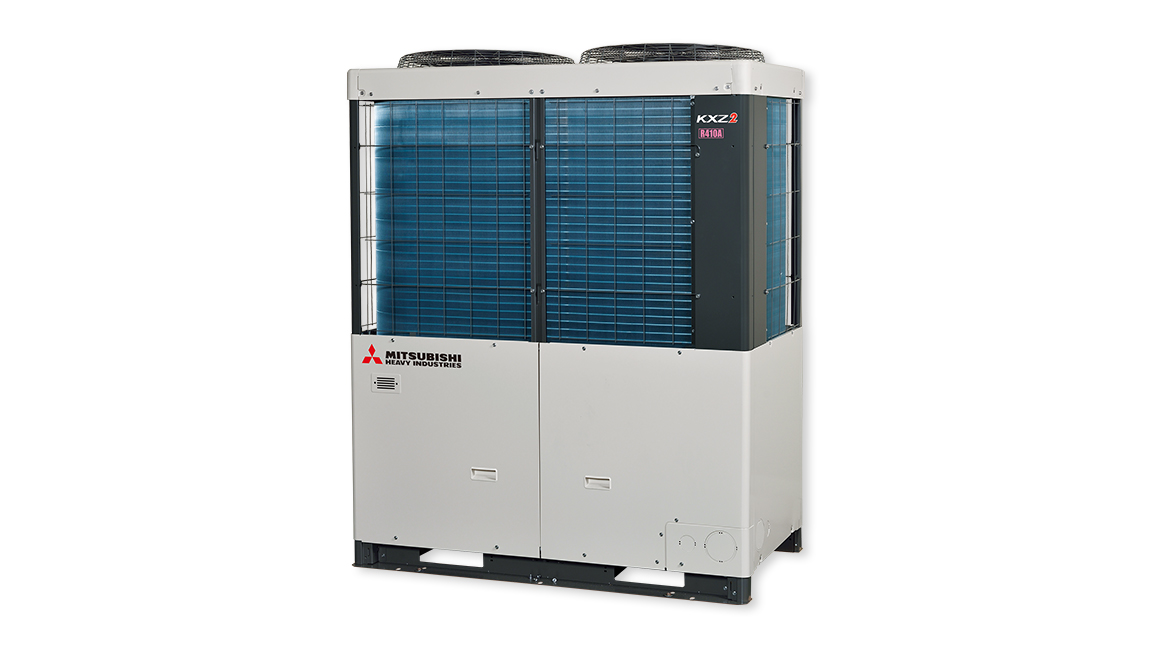

KXZE2 series
KXZE2 series
The KXZE2 series of VRF systems offer a high performance and versatile solution for medium to large scale commercial applications. With design improvements to the heat exchanger, inverter control, compressor and the DC fan motor, the KXZE2 series boasts a robust design and delivers higher performance and energy efficiencies.
CAPACITIES: 28.0kW – 168.0kW
POWER: Three Phase | AVAILABLE IN: 2 Pipe | Refrigerant: R410A
Key features
- Connect up to 80 indoor units / up to 200% connection capacity for standard and 160-200% for large connection models.
- Total piping length up to 1000m
- New Heat Exchanger design for improved refrigerant distribution and increased effectiveness
- Blue Fin technology for improved corrosion resistance of the heat exchanger
Standard Models
| Model | kW | Max no. connectable I.U. | Maximum Connection Capacity (%) |
|---|---|---|---|
| FDC280KXZE2 | 28.0 | 37 | 200 |
| FDC335KXZE2 | 33.5 | 44 | 200 |
| FDC400KXZE2 | 40.0 | 53 | 200 |
| FDC450KXZE2 | 45.0 | 60 | 200 |
| FDC475KXZE2 | 47.5 | 50 | 160 |
| FDC500KXZE2 | 50.0 | 53 | 160 |
| FDC560KXZE2 | 56.0 | 59 | 160 |
| FDC615KXZE2 | 61.5 | 65 | 160 |
| FDC670KXZE2 | 67.0 | 71 | 160 |
| FDC735KXZE2 | 73.5 | 78 | 160 |
| FDC800KXZE2 | 80.0 | 80 | 160 |
| FDC850KXZE2 | 85.0 | 80 | 160 |
| FDC900KXZE2 | 90.0 | 80 | 160 |
| FDC950KXZE2 | 95.0 | 80 | 160 |
| FDC1000KXZE2 | 100.0 | 80 | 130 |
| FDC1060KXZE2 | 106.0 | 80 | 130 |
| FDC1120KXZE2 | 112.0 | 80 | 130 |
| FDC1200KXZE2 | 120.0 | 80 | 130 |
| FDC1250KXZE2 | 125.0 | 80 | 130 |
| FDC1300KXZE2 | 130.0 | 80 | 130 |
| FDC1350KXZE2 | 135.0 | 80 | 130 |
| FDC1425KXZE2 | 142.5 | 80 | 130 |
| FDC1450KXZE2 | 145.0 | 80 | 130 |
| FDC1500KXZE2 | 150.0 | 80 | 130 |
| FDC1560KXZE2 | 156.0 | 80 | 130 |
| FDC1620KXZE2 | 162.0 | 80 | 130 |
| FDC1680KXZE2 | 168.0 | 80 | 130 |
Ceiling Cassette
Ducted
Wall Mounted
Ceiling Suspended
Floor Standing
OA Processing Unit
 |
4way | FDT | Capacity kW 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
|---|---|---|---|
 |
4way Compact | FDTC | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 |
 |
2way | FDTW | Capacity kW 2.8 4.5 5.6 7.1 9.0 11.2 14 |
 |
1way | FDTS | Capacity kW 4.5 7.1 |
 |
1way compact | FDTQ | Capacity kW 2.2 2.8 3.6 |
 |
High Static Pressure | FDU | Capacity kW 4.5 5.6 7.1 9.0 11.2 14 16 22.4 28 |
|---|---|---|---|
 |
Low/Middle Static Pressure | FDUM | Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
 |
Low Static Pressure (thin) | FDUT | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 |
 |
Compact & Flexible | FDUH | Capacity kW 2.2 2.8 3.6 |
 |
FDK | Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 |
|---|
 |
FDE | Capacity kW 3.6 4.5 5.6 7.1 11.2 14 |
|---|
 |
2way | FDFW | Capacity kW 2.8 4.5 5.6 |
|---|---|---|---|
 |
with casing | FDFL | Capacity kW 7.1 |
 |
without casing | FDFU | Capacity kW 2.8 4.5 5.6 7.1 |
 |
FDU-F | Capacity kW 9.0 14 22.4 28 |
|---|
